Homelab
This post no longer reflects my current homelab setup as of 2026 as major changes were done to it, but serves as a good starting point on how I began :D
Please note that old urls of
prashantnook.inhave been replaced withpacsui.me, most infra has been migrated to new domain but … old domain might still be used in few places in blogs

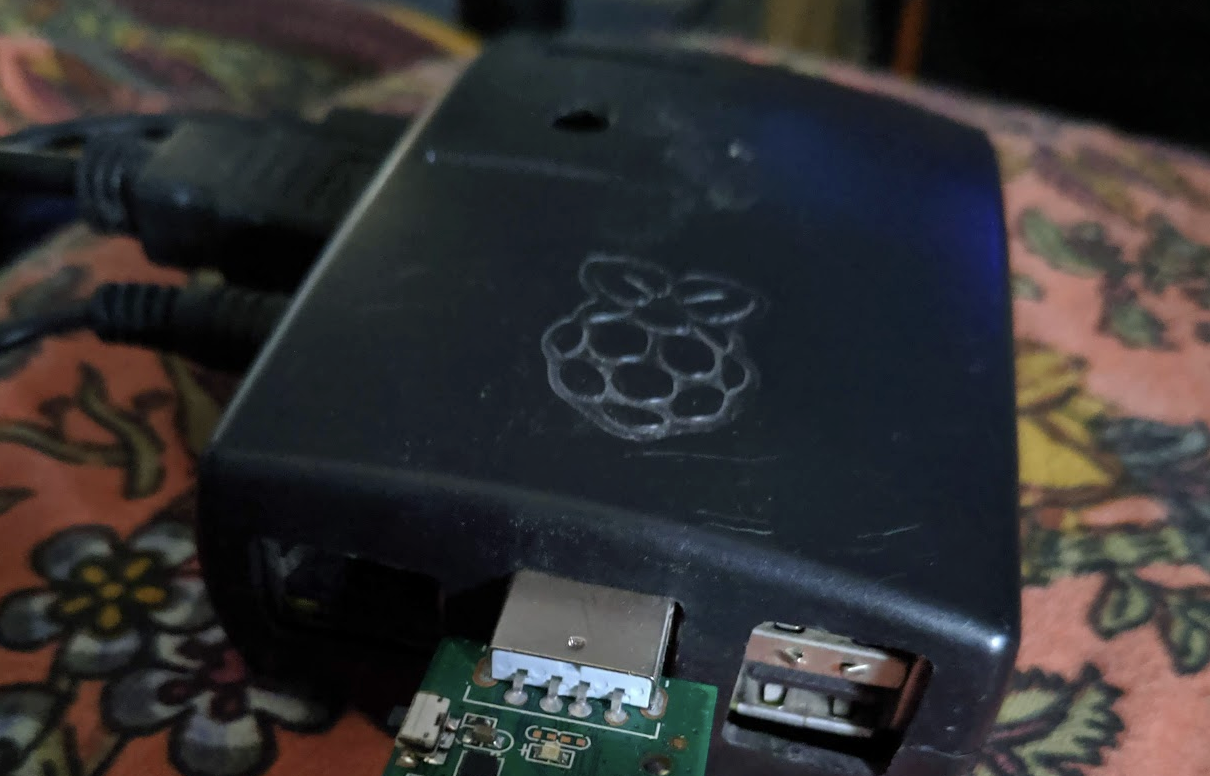

I have been homelabbing since a very long time, ever since I got my Raspberry Pi 2.
It ran the default rasbian (not even minimal version [2017]) all stared off with a basic SAMBA server installation for a spare HDD I have lying around and then found out about more and more amazing self hosted tools.
Then we found out about Oracle Free Tier which gave us access to a beefy 1 x 4 Core, 24G, Ampere Arm CPU , 2 x 1 Core, 1G, AMD EPYC CPU instance, with a combined Storage of roughly 150G. This is what we’ve been using for the past 4 years whilst having a local backup to Local Pi.
I know this isn’t considered homelab anymore cause it’s using cloud but well I’d consider it as Selfhosting journey.
I have been updating the setup from a lone Raspberry pi 2 since that time.
Homelab Infrastructure

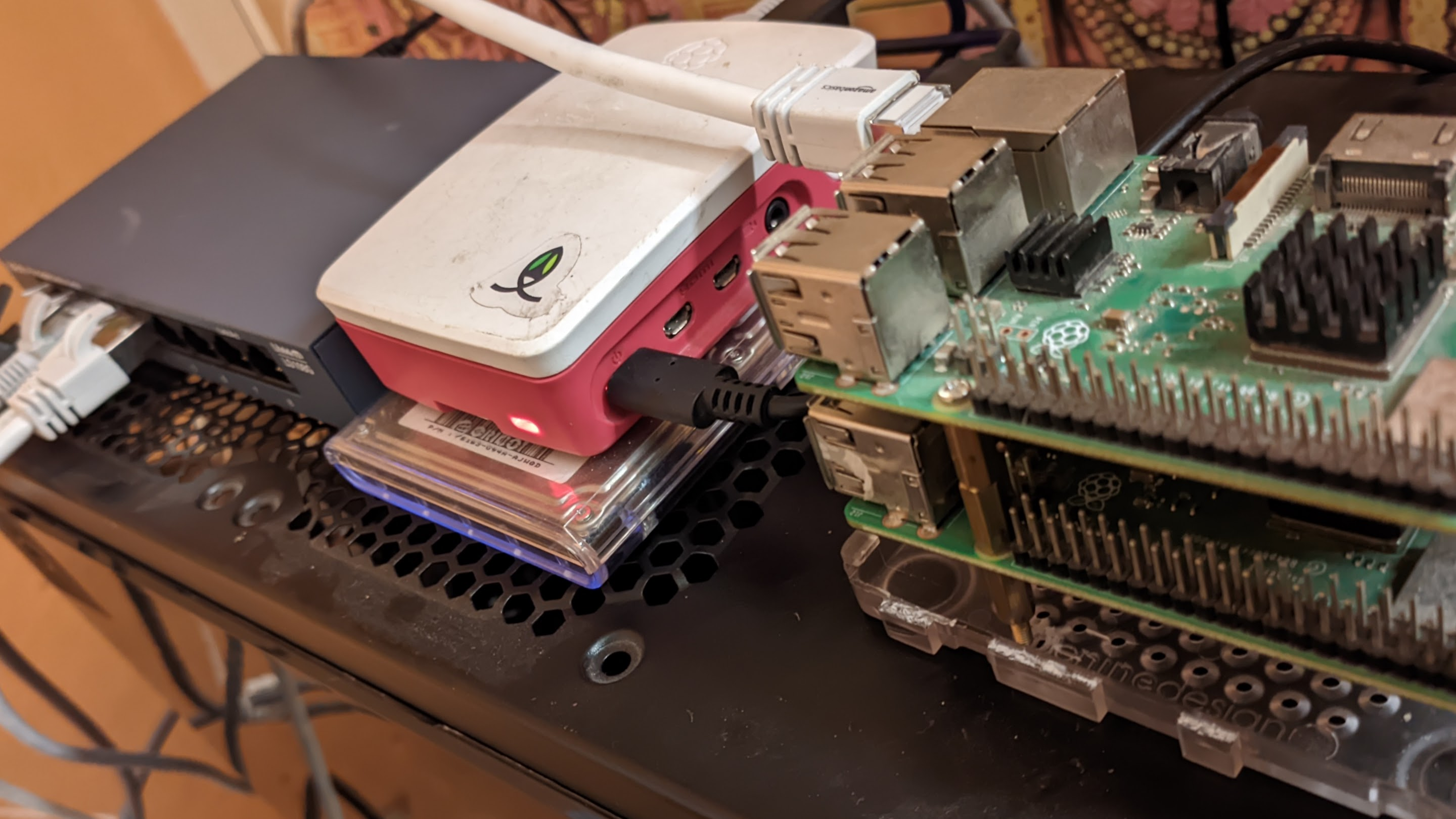

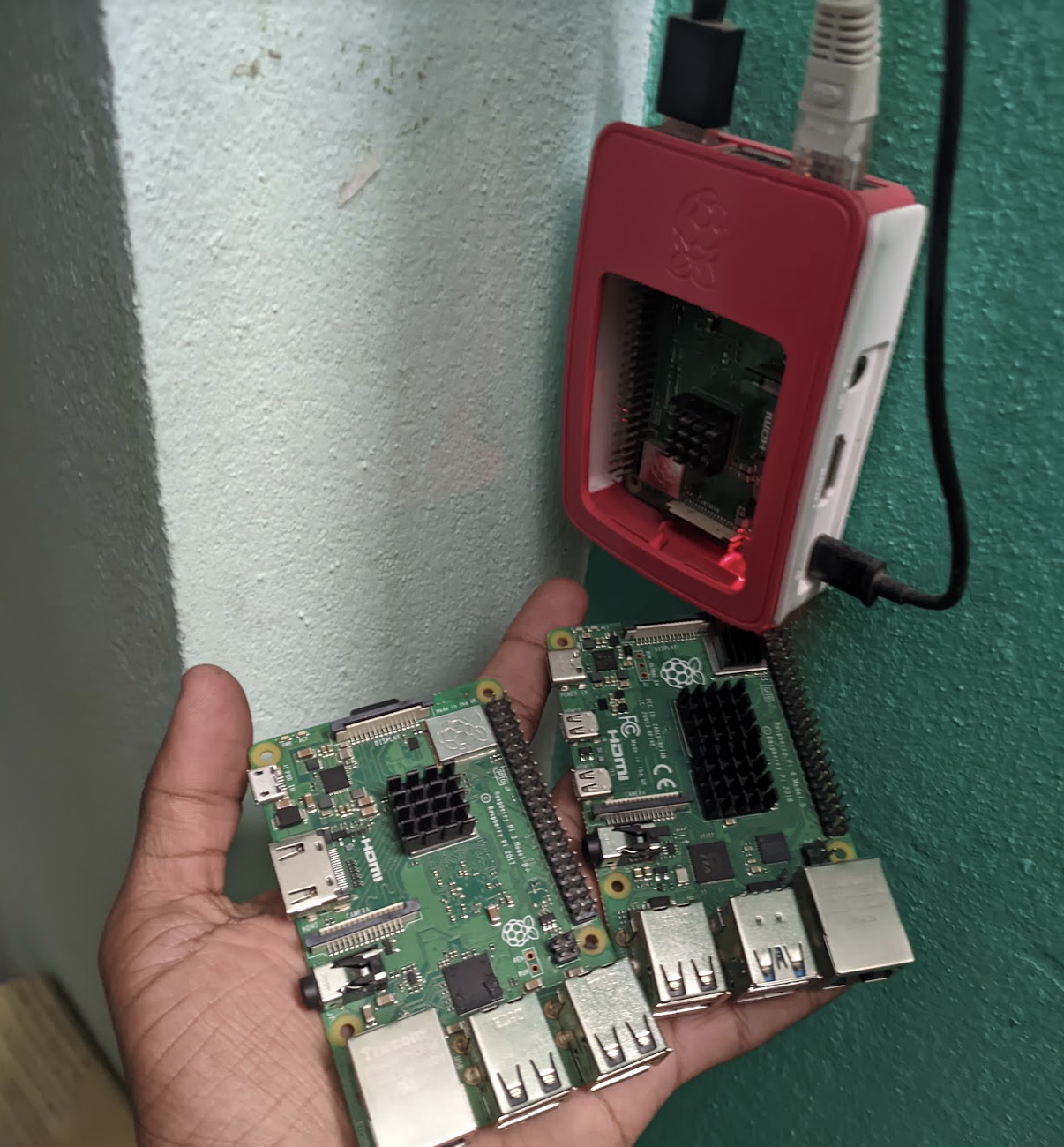

Currently I am running a 2x Raspberry Pi 4 , 1x Raspberry Pi 3 Cluster using K3s.
from k3s.io
K3s is a highly available, certified Kubernetes distribution designed for production workloads in unattended, resource-constrained, remote locations or inside IoT appliances.
Since Raspberry Pi’s are resouce contrained I decided to go with k3s instead of something more traditional like kubeadm, Well there is very minimal differences between both which aren’t really affecting me. k3s also comes with preconfigured Ingress and LoadBalancer Traefik which I have disabled. The default storageClass which was pretty handy setting up Samba.
Here is small simplified overview graph of the homelab setup I have.
What I have on my homelab
Few things I always tend to have:
Needs
- SAMBA/NFS server:
This is the main storage solution I've gotten for storing everything basically. It now consists of 1TB SSD + 1TB HDD + 128G SSD (Boot Drive)
- Pi-hole
Pi-hole is a Network wide adblocker which works by filtering out DNS requests which belong to known ad providers, This is basically my internal DNS server as well which routes to various things internally.
```sh
pacchu@homelab ~> k get deploy -n pihole
NAME READY UP-TO-DATE AVAILABLE AGE
pihole 1/1 1 1 7d
```
This is mainly used for local devices to use it as DNS instead of network wide adblocking due to an issue with my OpenWRT Router configuration.
- Portainer
Portainer is something [@leojfrancis](https://github.com/leojfrancis) introduced me to, This is basically a web UI for docker, kubernetes and bunch of other things. Primarily being used for Kubernetes and Immich Docker server (5 nodes free limit).
- VSCode Dev Server
I Used to use VS Code dev server to centralize all my projects while programming, As I tend to jump between my PC and laptop (and um.. why not)
I now have removed this as Remote Codespaces Extensions provides and much more seamless experience.
- Gitea
I used to use a internal git server which manages config files before pushing changes to github, But later realised using Github + Gitlab would be a better choice.
- Nextcloud
This was the time Google photos decided to go from fully free to all android devices to a paid service which ties to Google free 15G Limit, I was testing out various photo backup solutions and Nextcloud was one of them.
- Immich
Immich is a faily new addition to my homelab as it has recently gotten traction on r/Selfhosted Subreddit. A Google photos self hosted alternative, Pretty impressive project by the folks developing Immich. Thank you for bringing this amazing project.
This has been my secondary backup solution for all the photos including my parent's photos.
Additional
- Minecraft Server
I Absolutely love playing minecraft and It has been my goto game to have fun with friends, This is hosted for us all to play and have fun.
- [mc.pacsui.me:25565](mc.pacsui.in:25565)
Feel free to join in and explore the server, Its on version 1.19.2
This Blog (https://pacsui.me)
```bash
pacchu@homelab ~> k get deploy -n blog
NAME READY UP-TO-DATE AVAILABLE AGE
pacblog 1/1 1 1 3d23h
---
```
- Grafana, Prometheus
Monitoring stuff which I will be messing around for metrics
Development
- MangaToKindle Bot
This is a side project which lets me send manga/webtoons to my kindle in a kindle supported format. This uses Kubernetes api to automatically create jobs to convert manga.
- PacGo Bot
This is a rewrite of pacchubot which was written back in 2020 in golang.
… and couple of Torrent Downloaders which will download to my Storage (Where this website’s CDN is hosted to)
There were alot of endpoints to pacsui.me which were migrated when oracle cloud account was suspended.
- https://portainer.pacsui.me
- https://nginx.pacsui.me
- https://*.iiit.pacsui.me
Some infrastructure of IIIT were hosted on the endpoints which are now taken down. (Why did I put infra from IIIT on my servers? Restrictions .. alot of network proxy blocking firewalls.)
Yeah for now these are all the things I have migrated off from Oracle cloud to my little onprem server. Currently webui tools like portainer, grafana and other metrics are only hosted internally.
I would probably update my blog if any new things I might add to this so…
PS I was listening to this song while writing this :D~
